Brand Name : HAOYO
Model Number : HAOYO
Certification : ABS,BV,CCS,DNV,LR,NK
Place of Origin : China
MOQ : 1 unit
Price : 30000USD
Payment Terms : T/T,L/C
Supply Ability : 300 UNITS
Delivery Time : 90days
Packaging Details : NUDE
Use Situation : New
Operstion formal : Ground operation
Shipment Parameters : According to The Export Standards
Specification : According to The Export Standards
Trademark : HAOYO
Origin : Shanghai
Sling Type : Wire Rope

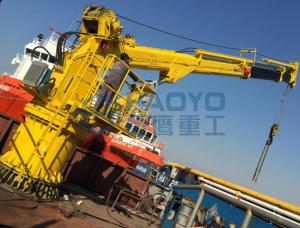

The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly. The cranes are available from 5 –40 meters of crane boom, which have long range of usage.HAOYO Marine Telescopic cranes can be designed and manufactured by clients’ requirements in our own factory.
Telescoping Hydraulic Boom Marine Crane are most suitable when the amount of space on deck is ample. These cranes offer a cost-effective alternative to Fixed booms,knuckle booms or telescopic booms.Those cranes are fixed where the lift is mostly done by the winch. Cannot be hydraulically extended and retracted and have no knuckle function.Hydraulic Boom Marine Crane are reliable and effective cranes for general cargo handling and service onboard ships and offshore units. Tailor made to your requested specifications, in different boom lengths and lifting capacities for different sea state working conditions. All cranes can be equipped with different accessories and class certified by ABS/CCS..
Drawing(Telescopic Boom Offshore Pedestal Crane Operator )
Technical Parameters(Telescopic Boom Offshore Pedestal Crane Operator)
MODEL | Safety Load (KN) | Max Outreach (m) | Lifting Speed(m/min) | Slewing Speed (r/min) | Luffing Time (s) | Hoisting Height (m) | Slewing Angle(°) | Permissible Heeling(transverse/ longitudinal)(°) | Power |
10 | 10 | 6~20 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 7.5 |
15 | 15 | 8~22 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 11 |
20 | 20 | 5~24 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 15 |
30 | 30 | 8~25 | 15 | 0.9 | 70 | 30 | 360° | 2° /5° | 22 |
50 | 50 | 12~25 | 15 | 0.75 | 80 | 30 | 360° | 2° /5° | 37 |
80 | 80 | 12~25 | 15 | 0.75 | 100 | 40 | 360° | 2° /5° | 55 |
100 | 100 | 12~25 | 15 | 0.75 | 110 | 40 | 360° | 2° /5° | 75 |
150 | 150 | 12~28 | 15 | 0.6 | 110 | 30 | 360° | 2° /5° | 90 |
200 | 200 | 16~30 | 15 | 0.6 | 120 | 35 | 270° | 2° /5° | 75*2 |
250 | 250 | 20~35 | 15 | 0.5 | 130 | 40 | 270° | 2° /5° | 90*2 |
300 | 300 | 35 | 15 | 0.4 | 140 | 40 | 270° | 2° /5° | 90*2 |
350 | 350 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 110*2 |
400 | 400 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 140*2 |
450 | 450 | 25~40 | 15 | 0.45 | 160 | 50 | 360° | 2° /5° | 140*2 |
500 | 500 | 20~40 | 15 | 0.45 | 170 | 50 | 360° | 2° /5° | 165*2 |
Certifications
Accessories
Packaging & Delivery
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice according
to your requirements.
About us
1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient support,both to
our clients and partners.
