Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane

Product Categories
Shanghai HAOYO marine machinery
Contact Now

Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane

Brand Name : HAOYO

Model Number : HAOYO

Certification : BV,CCS,ABS,NK,LR,DNV

Place of Origin : China

MOQ : 1set

Price : USD130000/set

Payment Terms : L/C, T/T

Supply Ability : 50set per year

Delivery Time : 100days

Packaging Details : nude

Material : Q345

Color : as required

Use Situation : New

Operation formal : Ground operation

Shipment Packaging : According to The Export Standards

Trademark : HAOYO

Origin : Shanghai

Sling Type : Wire Rope

Type of crane : Foldable boom marine crane

Application : Flexible and Strong, Saving Space,Multi-function

Contact Now

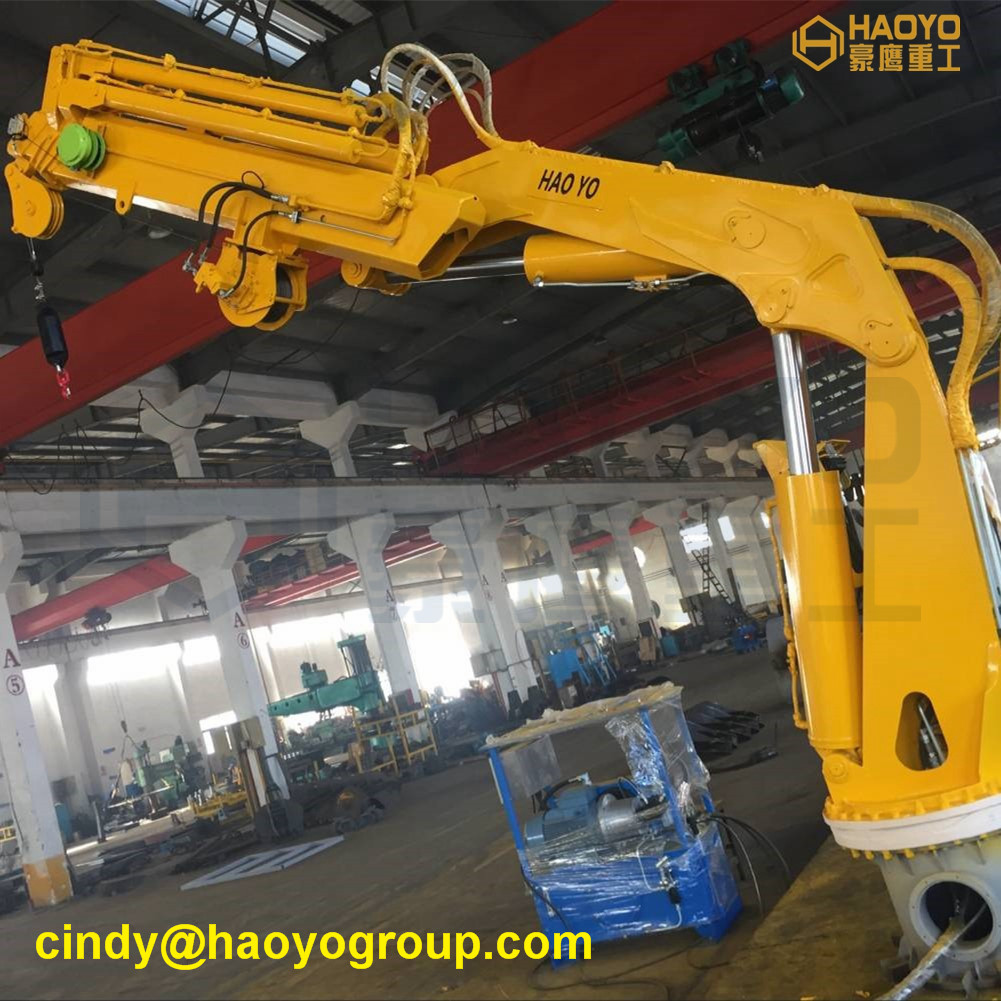

Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types

This Offshore Marine Ship hydraulic Foldable Telescopic&Knuckle Boom crane
mostly used on oil tanker and port.the main parts use world famous brands promise
it has perfect performance.which has the function of easy convenient and reliable
to operation,flexible rotation,compact structure,and work very efficiency.

Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane

Drawing
Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane
Technical Parameters

MODELOutreach
(m)		Safety Load(kN)Lifting Moment(kNm)Total Moment (r/min)Pedestal Diameter (mm)Dead Weight (t)
ECK 1508.0-12.02.1-1.1132-1682418852.8-3.2
ECK 25010.0-14.02.9-1.8242-2903818853.7-4.3
ECK 35012.0-16.03.6-2.3370-43060310955.3-6.3
ECK 55014.0-18.04.7-3.2573-66098013257.8-9.2
ECK 75014.0-18.06.1-4.2749-8551375149011.5-12.8
ECK115016.0-20.07.3-5.21040-11601765149012.7-14.0
ECK145016.0-20.09.0-6.41268-14402555177019.2-23.0
ECK 22027.530,022004000180025.0
ECK 30030.030.030005000206527.5
ECK 40032.030.040006300205030.0
ECK 50035.035.050008000224035.0
ECK 80037.050.0800011500227155.0
ECK100040.060.01000014400253670.0
ECK120043.080.012000180002550100.0
ECK160045.0100.016000340003166150.0
ECK200050.0125.020000440003987200.0
ECK250050.0150.025000500004000220.0
ECK300050.0200.030000600004500275.0


Certifications
Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane
Hydraulic Station
Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane
Packaging&Delivery
Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice according
to your requirements.

About HAOYO


Foldable 3 ton Hydraulic Hose Handling Cranes for All Ship Types Marine Ship Deck Crane

Our Service
♦ HAOYO after Sales Service provides timely and efficient support, both to our clients
and partners.

♦ Our Spare-Parts office, instead, deals with requests from customers around the world,
arranging component shipment in the shortest possible time.

♦ Our HAOYO Spare-Parts staff also support retailers and customers in choosing pieces
best suited to their needs.
