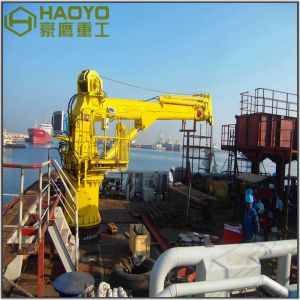

Hydraulic Telescoping Boom Crane Extension Project Marine Ship Deck Crane
Telescopic boom cranes can be hydraulic extended and retracted without a knuckle function.
These cranes should always be executed with a hoisting winch installation.
1.Telescopic Marine Crane is composed ofbase,armframe,tower,hydraulicwinch,telescopic oil cylinder,
Amplitude oil cylinder, hydraulic rotary mechanism, operating platform, hydraulic transmission parts,
electric controlling part and etc.
2.The base is cylinder structure, can be welded on the deck, also can connect with deck by high strength
bolts. Connection mode must to be marked.
3.Arm frame and tower are box structure. Hydraulic winch controls the goods rising and drop. Telescopic
oil cylinder controls level the telescopic crane boom. Amplitude oil cylinder controls goods correct hook-on
point and landing point.
4. Swing mechanism for controlling crane turning right or left turn. Operation platform is used for operation
and maintenance debugging. Hydraulic transmission parts for the system to provide pressure oil; The
electrical control system mainly control motor stops,operation.
Drawing(Hydraulic Telescoping Boom Crane Extension Project Marine Ship Deck Crane)
Technical Parameters
| MODEL | Safety Load
(KN) | Max Outreach
(m) | Lifting Speed (m/min) | Slewing Speed
(r/min) | Luffing Time
(s) | Hoisting Height
(m) | Slewing Angle(°) | Permissible Heeling(transverse/
longitudinal)(°) | Power (kW) |
| 10 | 10 | 6~20 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 7.5 |
| 15 | 15 | 8~22 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 11 |
| 20 | 20 | 5~24 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 15 |
| 30 | 30 | 8~25 | 15 | 0.9 | 70 | 30 | 360° | 2° /5° | 22 |
| 50 | 50 | 12~25 | 15 | 0.75 | 80 | 30 | 360° | 2° /5° | 37 |
| 80 | 80 | 12~25 | 15 | 0.75 | 100 | 40 | 360° | 2° /5° | 55 |
| 100 | 100 | 12~25 | 15 | 0.75 | 110 | 40 | 360° | 2° /5° | 75 |
| 150 | 150 | 12~28 | 15 | 0.6 | 110 | 30 | 360° | 2° /5° | 90 |
| 200 | 200 | 16~30 | 15 | 0.6 | 120 | 35 | 270° | 2° /5° | 75*2 |
| 250 | 250 | 20~35 | 15 | 0.5 | 130 | 40 | 270° | 2° /5° | 90*2 |
| 300 | 300 | 35 | 15 | 0.4 | 140 | 40 | 270° | 2° /5° | 90*2 |
| 350 | 350 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 110*2 |
| 400 | 400 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 140*2 |
| 450 | 450 | 25~40 | 15 | 0.45 | 160 | 50 | 360° | 2° /5° | 140*2 |
| 500 | 500 | 20~40 | 15 | 0.45 | 170 | 50 | 360° | 2° /5° | 165*2 |
Production Flow(Hydraulic Telescoping Boom Crane Extension Project Marine Ship Deck Crane)
Certifications(Hydraulic Telescoping Boom Crane Extension Project Marine Ship Deck Crane)
Packaging & Delivery(Hydraulic Telescoping Boom Crane Extension Project Marine Ship Deck Crane)
Shipping details
♦ check all items and packaging before loading.
♦ can check the loaded or send pictures to you.
♦ shipping for you file, such as the bill of lading, packing list, according to your requirements.
